Mini-Grid/Microgrid STS Standard keypad Prepaid TOU Tariffs Single Phase Energy Meter
Features:
1. Users purchases energy by the vending network to get a serial number (TOKEN), the Token contains 20 digits and is encrypted.
2. TOU tariffs function can help operators to set different prices by inputting corresponding Token or IR adaptor.
3. The smart meter can be set the maximum power everyday to limit the energy usage.
4. Stronpay vending software is able to integrated with mobile payment including M-PESA, Alipay, MTN, Airtel, etc
5. It has excellent event log like recharge record, cover open record, magnetic detection record and credit clear record.
6. The meter can be set Max overdraft when the credit is zero.
Electrical Parameters
Nominal Voltage:230V
Working Voltage Range:70%~120%Un
Nominal Frequency:50-60Hz
Basic Current (Ib):5A
Maximum Current (Imax):80A
Starting Current (Ist):20mA
Active Energy Constant:1000imp/kWh
Measurement Accuracy:Class 1.0
Power Consumption in Voltage Circuit:<2W <8VA
Power Consumption in Current Circuit:<1VA
Operation Temperature Range:-25℃-70℃
Storage Temperature Range:-40℃-85℃
Electric Magnetic Compatibility
| AC Insulation Strength | 4kV at 50Hz during 1min |
| Impulse voltage 1.2/50 us mains connections | 8kV |
| Electrostatic Discharges | Contact discharge | 8kV |
| Air discharge | 16kV |
| Electromagnetic RF Field | 27MHz-500MHz | 10V/m |
| 100KHz-1GHz | 30V/m |
| Fast transient burst test | 4kV |
| Protection | Class II |
Meter Dimension
Function:
1. Basic functions:
✽ Meter Recharge By Inputting TOKEN
✽ Active energy measurement
✽ MD(maximum demand measurement)
✽ Auto scroll mode display
✽ Build-in relay control
✽ Event log
✽ Low Credit Alarm
2. TOU Tariff: Meters can be set TOU Tariff by inputting corresponding TOKEN. Utilities can set step price on request.
E.g. Step 1: 00:00-07:00 Price1: $1/Kwh
Step 2: 07:00-17:30 Price2: $1.5/Kwh
Step 3: 17:30-24:00 Price3: $1/Kwh
3. Anti-Tamper Functions: Meter will automatically close the valve after detection of magnetic field and open cover event.
4. Overdraft Collection:Electricity Overdraft can be collected day by day or month by month.
5. Information Inquiry: Consumer could check the data like Credit Remain, Total Purchased and Total Credit by inputting the short code.
Two ways to recharge prepaid electricity meter
1. By Stronpay vending Software
Stronpay Vending Software is a STS standard encryption vending management system, it has three different versions can be choose: Web based version, Stand alone version and Hand held mobile vending unit. It consists of Stronpay management server(CMS) and Stronpay management Client(CMC).
CMC provides administrative operations, such as customer and meter registration, vending, report. It can be run on an independent device in form of standalone software. Multiple clients can be connected to a single management server(CMS). CMC also allows multiple operators and access to system which is configured by the administrator.
➯ Via local sales point or handheld mobile vending unit
2. By the third party platform or local mobile payment with API
➪ Via mobile phone
API: Application Program Interface, which is the agreement connecting the third party APP and our Stronpay vending software.
The advantages to recharge with mobile payment:
✽ Users can top up electricity by mobile money without leaving the house.
✽ Users could check information by their telephone.
✽ It helps utilities for Revenue protection and consumer
Product Tags:
|
|

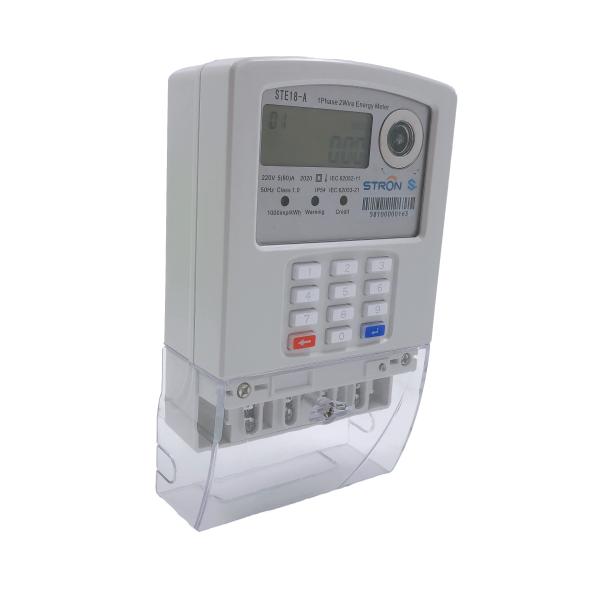

Prepaid STS Standard keypad IP54 Waterproof 1 Phase 4 Wires Electricity Meter Images
|
